Spesifikasi YOSHITAKE Steam Trap TD-10 NA dan TD-30NA
- Merk : YOSHITAKE

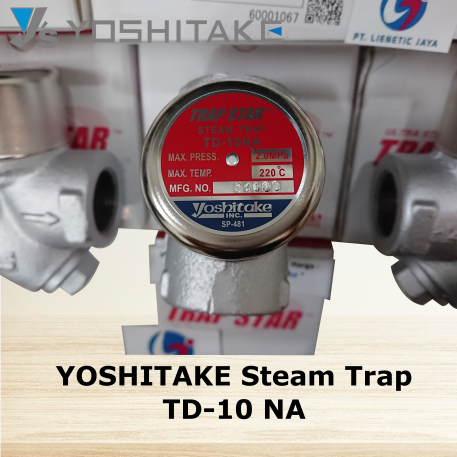

Yoshitake Model TD-10NA
- Nominal Size : 15-25A
- Application : Steam condensate
- Working pressure : 0.035 ~ 2.0 MPa
- Allowable back pressure : 50% or less of inlet pressure
- Max. Temperature : 220 deg C
- Connection : JIS Rc screwed
- Material :
Body : Ductile cast iron
Disc, seat : Stainless steel (special heat treatment)
Yoshitake Model TD-30NA
- Nominal Size : 15-25A
- Application : Steam condensate
- Working pressure :
0.035 ~ 1.0 MPa
0.035 ~ 2.0 MPa - Allowable back pressure : 50% or less of inlet pressure
- Max. Temperature : 220 deg C
- Connection :
JIS 10K FF flanged
JIS 20K FF flanged - Material :
Body : Ductile cast iron
Disc, seat : Stainless steel (special heat treatment)
